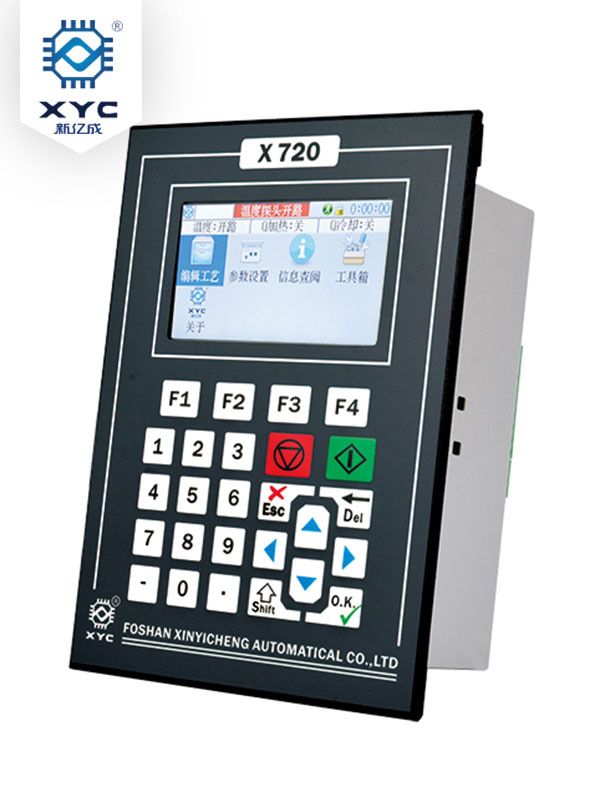

X720 彩屏染色電腦
1、采用CM3高性能處理器；
2、采用4.3英寸TFT彩屏，像素480x272點；
3、1路PT100輸入；1路4~20mA輸出（可用于加熱或調速）；4路開關量輸入；8路繼電器輸出；IO支持DIY設置；1路RS485監控通訊接口；1個USB接口， U盤可拷貝電腦的參數和工藝及升級軟件版本；
4、支持數字及符號輸入，可顯示中英文、數字及符號；
5、可編99條染色工藝，每條50步，每步可同時運行4個不同的功能；
6、采用開關電源，輸入電源AC100~240V、0.26A、50~60Hz，總功率 ＜ 10W，環境工作溫度0~55℃；相對濕度≤85%，機身尺寸160（寬）×220（高）×65（深）mm，開孔尺寸133（寬）×185（高）mm；卡式安裝。
X720 Color Screen Dyeing Computer
1、It uses CM3 high performance processor.
2、It uses 4.3-inch TFT color screen with 480 × 272 pixels resolution;
3、It includes: one PT100 input channels；4 switch inputs；one 4 ~ 20MA output channels with DIY setting；8 relay output with DIY setting；one RS485 monitoring and communication interface; USB interface for copying computer parameters and processes as well as upgrading software.
4、Numbers and symbols can be input through keyboard，while English, numbers and symbols can be displayed on screen.
5、99 dyeing processes ×50 steps can be programmed.
6、It uses switching power supply of AC90~250V /50~60HZ, its power consumption is <10W, working temperature is 0~50℃, machine size is 160 (width) ×220 (height) ×65 (depth) mm, starter size is 133(width) ×185 (depth) mm, it adopts buckle type mounting method.
